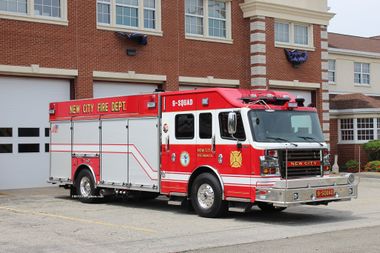

9-Squad (2022)

9-Squad
Overview
Year	2022 (2022)
Manufacturer	Rosenbauer
Type	Pumper
Chronology
Predecessor	1995 Pierce Heavy Rescue (9-Rescue)

At-a-Glance
Model	Commander
Sub Type	Rescue-Pumper
Features
Pump Capacity	1750 GPM
Water Capacity	750 USG
Foam Capacity	30 USG
Notable Dates
Dedication	June 3, 2023

General

• Apparatus Type: Pumper
• Apparatus Sub Type: Rescue-Pumper
• Manufacturer: Rosenbauer
• Year: 2022
• Serial Number: 15265
• VIN: 54F2JCCU3NWM13110

Chassis/Cab

• Model: Commander
• Cab Material: Aluminum
• Doors: 4
• Raised Roof: Yes
• Front Bumper: 24" extended with hydraulic reel
• Length: 142 inches (11 ft 10 in) overall, 71 inches (5 ft 11 in) crew cab
• Tilt: Full

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Cummins X15
• Engine Specs: 500 HP

Pump & Tank

• Pump Make/Model: Waterous CSU
• Pump Capacity: 1750 GPM, single-stage
• Pump Location: Midship
• Drive Type: Split-shaft
• Water Capacity: 750 USG
• Foam Type: 30 USG

Body

• Material: Aluminum
• Misc. Features: Roll up compartment doors

Equipment

• Generator: Harrison 15 kW
• Light Tower: Will-Burt Night Scan

Dimensions

• Overall Height: 128 inches (10 ft 8 in)
• Overall Length: 418 inches (34 ft 10 in)
• Wheelbase: 215 inches (17 ft 11 in)

Construction

• Dealer: Garrison Fire & Rescue
• Construction Complete: February 2023

Disposition

• Dedication Date: June 3, 2023

CAD Drawing: 2021 Rosenbauer 9-Squad CAD Drawing
