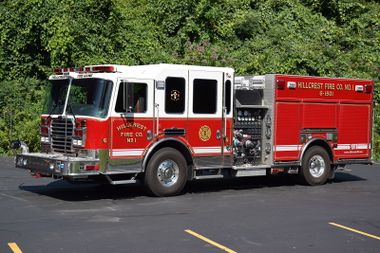

6-1501 (2012)
Jump to navigation
Jump to search
| 6-1501 | |
|---|---|
 | |
| Overview | |
| Year | 2012 |
| Manufacturer | KME |
| Type | Pumper |
| Chronology | |
| Predecessor | 1987 Pierce Pumper (6-1501) |
| Successor | 2023 Seagrave Pumper (6-2000) |
| At-a-Glance | |
|---|---|
| Model | Predator LFD |
| Serial Number | GSO-8101 |
| Features | |
| Pump Capacity | 1500 GPM |
| Water Capacity | 1000 USG |
| Notable Dates | |
| Dedication | September 24, 2011 |
General
- Apparatus Type: Pumper
- Manufacturer: KME
- Year: 2012
- Serial Number: GSO-8101
- VIN: 1K9AF4284CN058186
- Color: White over red
- Dept. Designation: #6
Chassis/Cab
- Model: Predator LFD
- Crew Capacity: 7
- Doors: 4
- Raised Roof: 10"
- Front Bumper: 22" extended with intake and preconnect
- Length: 170.5 inches (14 ft 2.5 in) overall, 74.5 inches (6 ft 2.5 in) crew cab
- Tilt: Full
Drivetrain
- Propulsion: Diesel
- Engine Make/Model: Cummins ISX15
- Engine Specs: 14.9 L, 500 hp, Inline 6
- Transmission Make/Model: Allison 4000 EVS
- Transmission Specs: 5-speed automatic
Pump & Tank
- Pump Make/Model: Waterous CSU
- Pump Capacity: 1500 GPM, single-stage
- Pump Location: Midship
- Drive Type: Split-shaft
- Water Capacity: 1000 USG
- Hose Reels: Booster rear compartment
Body
- Material: Stainless Steel
- Length: 200 inches (16 ft 8 in)
- Misc. Features: Roll up compartment doors
Equipment
- Generator: Smart Power PTO Hydraulic
- Light Tower: Will-Burt Night Scan Optimum Vertical
- Reels: 1 electric
Dimensions
- Overall Height: 114 inches (9 ft 6 in)
- Overall Length: 377 inches (31 ft 5 in)
- Wheelbase: 190 inches (15 ft 10 in)
Construction
- Factory: Nesquehoning, PA
- Dealer: William H. McGuffey, Inc.
Disposition
- Dedication Date: September 24, 2011
CAD Drawing:
2012 KME 6-1501 CAD Drawing
