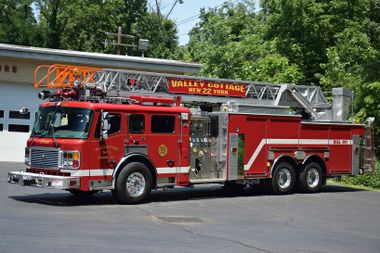

22-99
Overview
Year 2007; 17 years ago (2007)
Manufacturer American LaFrance/LTI
Type Aerial
Chronology
Predecessor 1975 American LaFrance Elevated Master Stream (22-75)


General

  • Apparatus Type: Aerial
  • Apparatus Sub Type: Ladder
  • Manufacturer: American LaFrance/LTI
  • Year: 2007
  • Serial Number: Y24561
  • VIN: 1AFHAACK27RY24561
  • Color: Red
  • NIMS Resource Typing: Aerial Type I

Chassis/Cab

  • Model: Eagle
  • Crew Capacity: 6
  • Doors: 4
  • Front Bumper: 18" extended
  • Length: 166 inches (13 ft 10 in) overall, 74 inches (6 ft 2 in) crew cab
  • Tilt: Full

Drivetrain

  • Propulsion: Diesel
  • Engine Make/Model: Detroit Diesel Series 60
  • Engine Specs: Inline 6
  • Transmission Make/Model: Allison
  • Transmission Specs: Telma Retarder
  • Tandem Axle: Yes

Pump & Tank

  • Pump Make/Model: Hale
  • Pump Capacity: 1500 GPM
  • Pump Location: Midship
  • Drive Type: Split-shaft
  • Water Capacity: 500 USG

Aerial

  • Manufacturer: LTI
  • Mounting: Rear
  • Vertical Reach: 110'
  • Sections: 4
  • Material: Steel
  • Tip Load: 500 lb dry
  • Prepiped Waterway: Yes
  • Outriggers: H-style, two sets, 12' spread
  • Features: Pinable waterway

Body

  • Length: 329 inches (27 ft 5 in)

Equipment

  • Generator: Harrison MAS 10 kW Hydraulic PTO
  • Reels: 1 electric

Dimensions

  • Overall Height: 137 inches (11 ft 5 in)
  • Overall Length: 506 inches (42 ft 2 in)
  • Wheelbase: 252 inches (21 ft 0 in)

Construction

  • Factory: Ephrata, PA
  • Dealer: Campbell Supply
  • Construction Started: December 2006
  • Construction Complete: June 2007
  • Delivery Date: August 29, 2007

Disposition

  • In Service Date: April 22, 2008


CAD Drawing: PDF 2007 American LaFrance 22-99 CAD Drawing
