17-Tanker (2017)

From Rockland Apparatus
Jump to navigation Jump to search

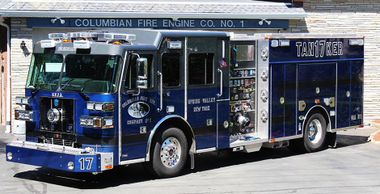

17-Tanker
17-Tanker 2017.jpg
Overview
Year 2017
Manufacturer Sutphen
Type Pumper
Chronology
Predecessor 1992 Sutphen Pumper (17-Tanker)
At-a-Glance
Model Monarch
Sub Type Rescue-Pumper
Serial Number HS-6037
Features
Pump Capacity 2000 GPM
Water Capacity 1000 USG
Notable Dates
Delivery February 23, 2018
In Service May 21, 2018
Dedication August 4, 2018

General

  • Apparatus Type: Pumper
  • Apparatus Sub Type: Rescue-Pumper
  • Manufacturer: Sutphen
  • Year: 2017
  • Serial Number: HS-6037
  • VIN: 1S9A3JNE7H1003111
  • Color: Gray over blue
  • NIMS Resource Typing: Engine Type I

Chassis/Cab

  • Model: Monarch
  • Cab Material: Aluminum
  • Crew Capacity: 8
  • Doors: 4
  • Raised Roof: 10"
  • Front Bumper: 18" extended with preconnects
  • Length: 161 inches (13 ft 5 in) overall • 73 inches (6 ft 1 in) crew cab
  • Tilt: Full

Drivetrain

  • Propulsion: Diesel
  • Engine Make/Model: Cummins ISX12
  • Engine Specs: 11.9 L, 500 hp, 1645 lb-ft, Inline 6
  • Transmission Make/Model: Allison 4000 EVS
  • Transmission Specs: 5-speed automatic

Pump & Tank

  • Pump Make/Model: Hale Qmax200-23L
  • Pump Capacity: 2000 GPM, single-stage
  • Pump Location: Midship
  • Drive Type: Split-shaft
  • Water Capacity: 1000 USG
  • Hose Reels: 1 booster over pump

Body

  • Body Type: Rescue-Pumper style
  • Material: Aluminum
  • Length: 220 inches (18 ft 4 in) overall • 166 inches (13 ft 10 in) body • 50 inches (4 ft 2 in) pumphouse

Equipment

  • Generator: Harrison Hydra-Gen MAS 10 kW PTO hydraulic
  • Reels: 1 electric

Dimensions

  • Overall Height: 117 inches (9 ft 9 in)
  • Overall Length: 395 inches (32 ft 11 in)
  • Wheelbase: 205 inches (17 ft 1 in)

Construction

  • Factory: Lake Ariel, PA
  • Dealer: Myers Fire
  • Construction Complete: January 2018
  • Delivery Date: February 23, 2018

Disposition

  • In Service Date: May 21, 2018, 21:52
  • Dedication Date: August 4, 2018


CAD Drawing: PDF 2017 Sutphen 17-Tanker CAD Drawing
