15-78 (2016)

From Rockland Apparatus
Jump to navigation Jump to search
15-78

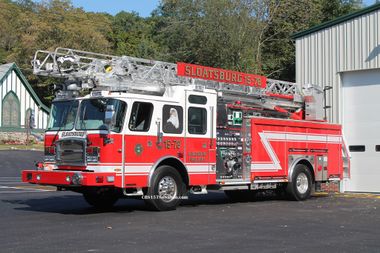

15-78 2016.jpg
Overview
Year 2016; 3 years ago (2016)
Manufacturer E-One
Type Aerial
Chronology
Predecessor 1992 Pierce Pumper (15-Quad)
At-a-Glance
Model Typhoon
Sub Type Ladder
Serial Number 140626
Cost $719,543
Features
Aerial Height 78'
Pump Capacity 2000 GPM
Water Capacity 500 USG
Notable Dates
Delivery December 2, 2016
In Service October 4, 2017
Dedication September 30, 2017

General

  • Apparatus Type: Aerial
  • Apparatus Sub Type: Ladder
  • Manufacturer: E-One
  • Year: 2016
  • Serial Number: 140626
  • VIN: 4EN6AAA8XG1000626
  • Color: White over red
  • NIMS Resource Typing: Aerial Type I

Chassis/Cab

  • Model: Typhoon
  • Cab Material: Aluminum
  • Crew Capacity: 8
  • Doors: 4
  • Raised Roof: 12" notched
  • Front Bumper: 20" extended with preconnect
  • Length: 160.5 inches (13 ft 4.5 in) overall, 67.5 inches (5 ft 7.5 in) crew cab
  • Tilt: Full
  • Misc. Features: Onspot chains

Drivetrain

  • Propulsion: Diesel
  • Engine Make/Model: Cummins ISL9
  • Engine Specs: 8.9 L, 450 hp, 1250 lb-ft, Inline 6
  • Transmission Make/Model: Allison 3000 EVS
  • Transmission Specs: 5-speed automatic with PTO

Pump & Tank

  • Pump Make/Model: Hale Qmax200-21L
  • Pump Capacity: 2000 GPM, single-stage
  • Pump Location: Midship
  • Drive Type: Split-shaft
  • Water Capacity: 500 USG

Aerial

  • Aerial Model: HP78
  • Mounting: Rear
  • Vertical Reach: 78'
  • Horizontal Reach: 70.2'
  • Sections: 3
  • Material: Aluminum
  • Tip Load: 750 lbs dry, 500 lbs wet
  • Prepiped Waterway: Yes
  • Outriggers: Rear, H-Style, 16' spread
  • Features: Roof ladder behind sign on bed section

Body

  • Material: Aluminum
  • Length: 264.5 inches (22 ft 0.5 in)
  • Misc. Features: Roll up compartment doors

Equipment

  • Generator: Harrison 8.0 MCR 8kW PTO
  • Reels: 1 electric (rear), 1 electric to ladder tip

Dimensions

  • Overall Height: 140 inches (11 ft 8 in)
  • Overall Length: 445 inches (37 ft 1 in)
  • Wheelbase: 220 inches (18 ft 4 in)

Construction

  • Factory: Ocala, FL
  • Dealer: Nichols Fire Apparatus
  • Cost: $719,543 (equivalent to $751,170 in 2018)
  • Construction Started: August 2016
  • Construction Complete: October 2016
  • Delivery Date: December 2, 2016

Disposition

  • In Service Date: October 4, 2017
  • Dedication Date: September 30, 2017
  • Misc. History: First call on April 24, 2017, utilized to assist Village resident take a stranded cat out of a tree


CAD Drawing: PDF 2016 E-One 15-78 CAD Drawing
