12-Tower (2010)

From Rockland Apparatus
Jump to: navigation, search
12-Tower

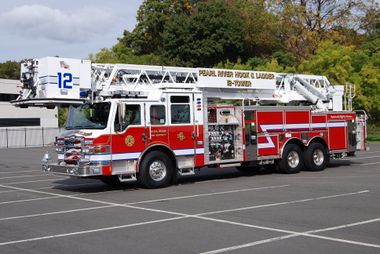

12-Tower 2010.jpg
Overview
Year 2010
Manufacturer Pierce
Type Aerial
Chronology
Predecessor 1990 Pierce Tower Ladder (12-Tower)
At-a-Glance
Model Velocity
Sub Type Ladder Platform
Serial Number 22594
Features
Aerial Height 100'
Pump Capacity 1750 GPM
Water Capacity 300 USG
Notable Dates
Delivery March 26, 2010
In Service May 21, 2010
Dedication August 28, 2010

General

  • Apparatus Type: Aerial
  • Apparatus Sub Type: Ladder Platform
  • Manufacturer: Pierce
  • Year: 2010
  • Serial Number: 22594
  • VIN: 4P1CV01E9AA010683
  • Color: White over red
  • NIMS Resource Typing: Aerial Type I
  • Dept. Designation: Truck #1

Chassis/Cab

  • Model: Velocity
  • Cab Material: Aluminum
  • Crew Capacity: 6
  • Doors: 4
  • Raised Roof: 10" raised notched
  • Front Bumper: 19" extended with hose tray
  • Length: 167 inches (13 ft 11 in) overall, 70 inches (5 ft 10 in) crew cab
  • Tilt: Full
  • Misc. Features: TAK-4 front suspension

Drivetrain

  • Propulsion: Diesel
  • Engine Make/Model: Cummins ISM
  • Engine Specs: 10.8 L, 500 hp, 1550 lb-ft, Inline 6
  • Transmission Make/Model: Allison 4000 EVS
  • Transmission Specs: 5-speed automatic
  • Tandem Axle: Yes

Pump & Tank

  • Pump Make/Model: Waterous CSU
  • Pump Capacity: 1750 GPM, single-stage
  • Pump Location: Midship
  • Drive Type: Split-shaft
  • Water Capacity: 300 USG

Aerial

  • Mounting: Rear
  • Vertical Reach: 100'
  • Horizontal Reach: 93'
  • Sections: 3
  • Material: Steel
  • Tip Load: 1000 lb
  • Prepiped Waterway: Yes
  • Outriggers: H-Style, dual set, 18' spread
  • Features: 68" (18 sq ft) bucket • 2 roof ladders and stokes basket mounted on base section • 1 roof ladder mounted inside fly section • Lyfe accessories

Body

  • Material: Aluminum
  • Length: 341.5 inches (28 ft 5.5 in)

Equipment

  • Generator: Harrison MPC 20 kW PTO hydraulic
  • Reels: 2 electric (both sides above pump)

Dimensions

  • Overall Height: 146 inches (12 ft 2 in)
  • Overall Length: 571.25 inches (47 ft 7.25 in)
  • Wheelbase: 261 inches (21 ft 9 in)

Construction

  • Factory: Appleton, WI
  • Dealer: Firematic Supply
  • Construction Complete: March 24, 2010
  • Delivery Date: March 26, 2010

Disposition

  • In Service Date: May 21, 2010
  • Dedication Date: August 28, 2010


CAD Drawing: PDF 2010 Pierce 12-Tower CAD Drawing
