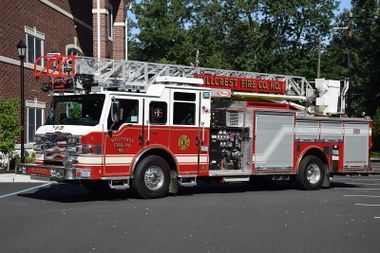

6-75
Overview
Year 2015; 9 years ago (2015)
Manufacturer Pierce
Type Aerial
Chronology
Predecessor 1990 Pierce Aerial (6-75)


At-a-Glance
Model Velocity
Sub Type Ladder
Serial Number 28058
Features
Aerial Height 75'
Pump Capacity 1500 GPM
Water Capacity 500 USG
Notable Dates
Delivery February 20, 2015
In Service April 6, 2015
Dedication August 22, 2015

General

  • Apparatus Type: Aerial
  • Apparatus Sub Type: Ladder
  • Manufacturer: Pierce
  • Year: 2015
  • Serial Number: 28058
  • VIN: 4P1BCHGF6FA015122
  • Color: White over red
  • NIMS Resource Typing: Aerial Ladder Type III
  • Dept. Designation: #1

Chassis/Cab

  • Model: Velocity
  • Cab Material: Aluminum
  • Crew Capacity: 7
  • Doors: 4
  • Raised Roof: 10" notched
  • Front Bumper: 19" extended with hose tray
  • Length: 167 inches (13 ft 11 in) overall • 70 inches (5 ft 10 in) crew cab
  • Tilt: Full
  • Misc. Features: Onspot chains

Drivetrain

  • Propulsion: Diesel
  • Engine Make/Model: Cummins ISX12
  • Engine Specs: 11.9 L, 500 hp, 1645 lb-ft, Inline 6
  • Transmission Make/Model: Allison 4000 EVS
  • Transmission Specs: 5-speed automatic

Pump & Tank

  • Pump Make/Model: Waterous CSU
  • Pump Capacity: 1500 GPM, single-stage
  • Pump Location: Midship
  • Drive Type: Split-shaft
  • Water Capacity: 500 USG

Aerial

  • Aerial Model: 75 HAL
  • Mounting: Rear
  • Vertical Reach: 75'
  • Horizontal Reach: 68'
  • Sections: 3
  • Material: Aluminum
  • Tip Load: 750 lbs dry, 500 lbs wet
  • Prepiped Waterway: Yes
  • Outriggers: H-Style, Single set, 16' spread

Body

  • Material: Aluminum
  • Length: 268.5 inches (22 ft 4.5 in) overall • 208.5 inches (17 ft 4.5 in) body • 60 inches (5 ft 0 in) pumphouse
  • Misc. Features: Roll up compartment doors

Equipment

  • Generator: Harrison Hydra-Gen MCR 10kW
  • Reels: 1 electrical

Dimensions

  • Overall Height: 137.5 inches (11 ft 5.5 in)
  • Overall Length: 441.5 inches (36 ft 9.5 in)
  • Wheelbase: 233.5 inches (19 ft 5.5 in)

Construction

  • Factory: Appleton, WI
  • Dealer: Firematic Supply
  • Construction Started: November 10, 2014
  • Construction Complete: February 2015
  • Delivery Date: February 20, 2015

Disposition

  • In Service Date: April 6, 2015
  • Dedication Date: August 22, 2015


CAD Drawing: PDF 2015 Pierce 6-75 CAD Drawing
