6-65 (1977)

6-65
Overview
Year	1977 (1977)
Manufacturer	Hendrickson/Pierce/Pitman
Type	Aerial
Chronology
Predecessor	1962 International/Young/Pitman Articulating Platform (6-65)
Successor	2002 Pierce Ladder Platform (6-Tower)

General

• Apparatus Type: Aerial
• Apparatus Sub Type: Articulating Platform
• Manufacturer: Hendrickson/Pierce/Pitman
• Year: 1977
• Serial Number: 9456C
• Color: White over red (originally white over lime green)
• NIMS Resource Typing: Aerial Type III
• Dept. Designation: #2

Chassis/Cab

• Manufacturer: Hendrickson
• Model: 1871-LPS
• Cab Type: Canopy
• Cab Material: Steel
• Crew Capacity: 5 seated
• Doors: 2

Drivetrain

• Propulsion: Diesel
• Engine Make/Model: Detroit Diesel 8V-71
• Transmission Make/Model: Allison HT740
• Transmission Specs: 4-speed automatic

Pump & Tank

• Pump Make/Model: Waterous CM
• Pump Capacity: 1250 GPM, two-stage
• Pump Location: Midship
• Drive Type: Split-shaft

Aerial

• Manufacturer: Pitman
• Aerial Model: Snorkel
• Mounting: Rear
• Vertical Reach: 65'
• Sections: 2
• Material: Steel
• Tip Load: 750 lbs dry, 500 lbs wet
• Prepiped Waterway: Yes
• Outriggers: A-Style, two pair, 12' spread
• Features: Winch on bucket

Body

• Manufacturer: Pierce
• Material: Steel

Equipment

• Generator: Onan diesel

Construction

• Delivery Date: July 26, 1977

Disposition

• Dedication Date: November 5, 1977
• Out of Service Date: March 17, 2003
• Purchaser: Benemérito Cuerpo de Bomberos de Guayaquil, Ecuador
• Sale Date: Summer 2003
• Sale Price: Donated
• Misc. History: Painted red in 1991

•

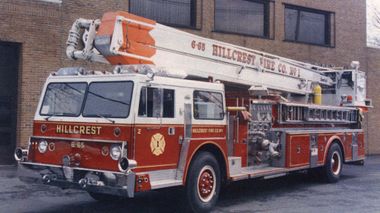

  Original color

•

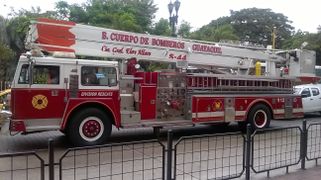

  In Ecuador
