16-1250 (2009)

From Rockland Apparatus
Jump to navigation Jump to search

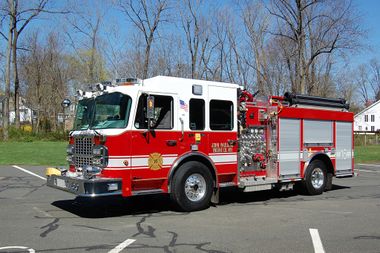

16-1250
Overview
Year 2009; 15 years ago (2009)
Manufacturer Spartan/Smeal
Type Pumper
Chronology
Predecessor 1969 Mack Pumper (16-1250)


General

  • Apparatus Type: Pumper
  • Manufacturer: Spartan/Smeal
  • Year: 2009
  • Serial Number: 3757
  • Color: White over red
  • NIMS Resource Typing: Engine Type I

Chassis/Cab

  • Manufacturer: Spartan
  • Model: Gladiator MFD
  • Doors: 4, barrier style
  • Raised Roof: 10"
  • Front Bumper: Extended with intake and preconnect
  • Length: 157 inches (13 ft 1 in) overall, 54 inches (4 ft 6 in) crew cab
  • Tilt: Full

Drivetrain

  • Propulsion: Diesel
  • Engine Make/Model: Detroit Diesel
  • Engine Specs: 425 hp
  • Transmission Make/Model: Allison 4000 EVS
  • Transmission Specs: Automatic

Pump & Tank

  • Pump Make/Model: Waterous CSU
  • Pump Capacity: 1500 GPM, single-stage
  • Pump Location: Midship
  • Drive Type: Split-shaft
  • Water Capacity: 500 USG
  • Foam System: Elkhart 125
  • Foam Capacity: 40 USG

Body

  • Manufacturer: Smeal
  • Material: Aluminum
  • Length: 207 inches (17 ft 3 in)
  • Misc. Features: Roll up compartment doors

Equipment

  • Generator: 6 kW diesel
  • Reels: 1 electric

Dimensions

  • Overall Height: 113 inches (9 ft 5 in)
  • Overall Length: 364 inches (30 ft 4 in)
  • Wheelbase: 175 inches (14 ft 7 in)

Construction

  • Factory: Charlotte, MI (Spartan), Snyder, NE (Smeal)
  • Delivery Date: March 25, 2010

Disposition

  • In Service Date: 2010
  • Dedication Date: May 1, 2010


CAD Drawing: PDF 2009 Spartan/Smeal 16-1250 CAD Drawing
